| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 1 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Type: | Golf Laser Rangefinder | Size: | 106X72X35mm |
|---|---|---|---|
| Function: | Multi-functional | Weight: | 158g-235g |
| Measure: | 5m-1000m | Item: | Laser Distance Meter Sensor |
| Application Field: | Golf Play+Hunting+Engineering | Keywords: | Military Laser Rangefinder Telescope |
| High Light: | HD Golf Laser Rangefinder,Hunting HD Golf Laser Rangefinder |
||

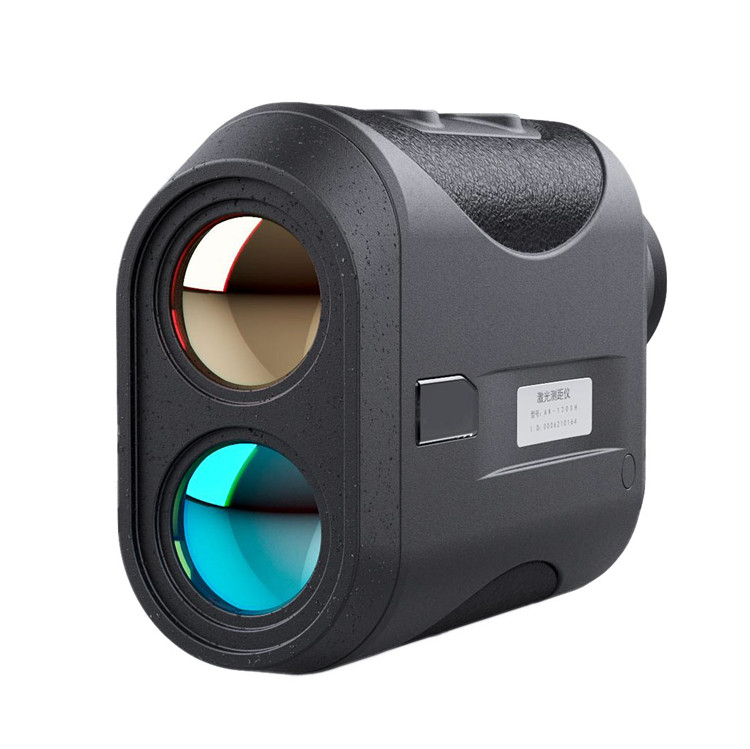

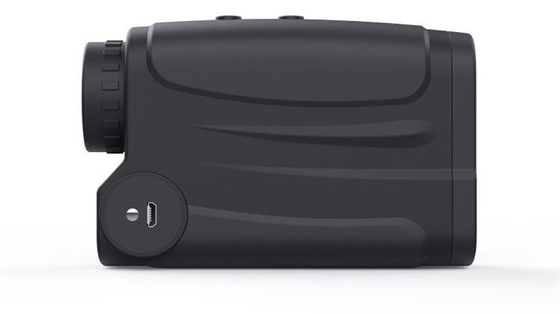

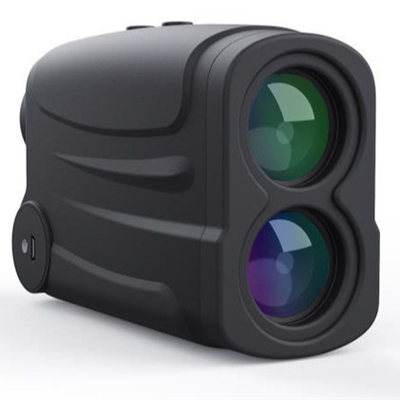

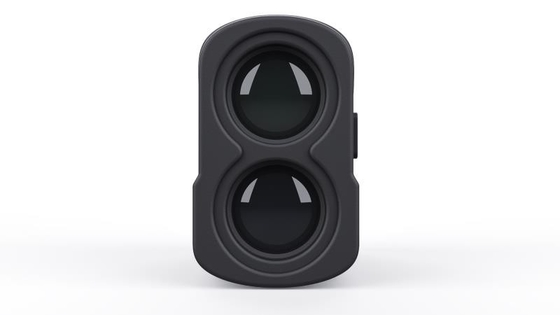

HD Golf Distance Finder Laser Rangefinder Scope For Hunting
Parameter:
| Ranging method: | Diode laser ranging (safe for human eyes) |
| Shell color: | black |
| wavelength: | 905nm |
| Ranging range: | 5-1000m |
| Ranging error: | ±0.5m |
| Range resolution: | 0.5m |
| Angle measurement range: | 0-90° |
| Angle measurement accuracy: | 0.5° |
| Angle display resolution: | 0.5° |
| Ranging display mode: | Transmissive LCD display in the field of view |
| Telescope magnification: | 6 times |
| Telescope caliber: | 25mm |
| Lens quality: | Multilayer broadband coating |
| Operating temperature: | ﹣20~50 ℃ |
| Operating humidity: | <=80% |
| Exit pupil diameter: | 3.8mm |
| Exit pupil distance: | 12mm |
| Focus method: | Eyepiece manual focusing |
| Ranging mode (8 modes): | Distance measurement, height measurement, angle measurement, speed measurement, continuous measurement, data memory, two-point |
| height measurement, golf mode | |
| Protection level: | IP54 |
| powered by : | CR-2 battery (3V) (can provide lithium battery charging) |
| Prism | BAK4 prism high light transmission prism, panorama without dark edges |
Features:
1. Ranging mode (measure the straight-line distance from the rangefinder to the measurement target).
2. Speed measurement mode (speed measurement of moving objects can be carried out, speed measurement range: 0-300km/h).
3. Data storage mode (group number and angle displayed on LCD screen).
4. Continuous scan mode (long press the range switch in the range mode to continuously measure the distance).
5. Altitude measurement mode (measure the bottom and height, can measure the height of the object, suitable for forestry, electricity, outdoor sports, etc.).
6. Angle measurement mode (the horizontal angle will be obtained by measuring in the golf ball trajectory correction mode).
7. Golf trajectory compensation (In this mode, the device will use the golf flight path algorithm to provide the user with a suggested hitting distance: This 828 rangefinder uses distance measurements and slope values (< from two points A and B to ±20° of the golf flight path equation), and then calculate the best golf shot distance based on this distance, which is also very suitable for hunting, shooting games and golf).
8. Horizontal distance measurement (input this function, the system will automatically eliminate the angle difference and calculate the horizontal distance).
9. All-in-one machine mode (press M key to switch to this mode, press the key to start measurement; this mode directly calculates the angle/tilt distance/height difference/horizontal distance between the target and the measuring point).
