| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Model: | C3320-1 | Color: | Black |
|---|---|---|---|
| Magnification: | 8X Optical Magnification | Focal Length: | F#4.0 |
| Feature: | Multi-function | Cool Down Type:: | <6min |
| Weight: | 8kg | ||
| High Light: | 320X256 Thermal Imaging Cooled Binoculars,FPA Thermal Imaging Cooled Binoculars,8X Magnification Laser Ranging Cooled Binoculars |
||

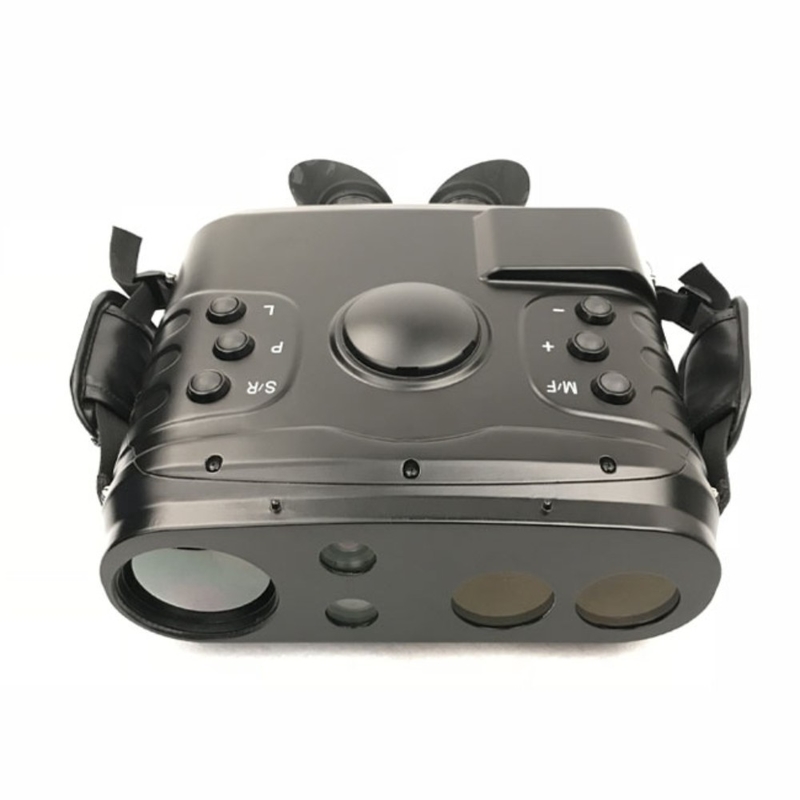

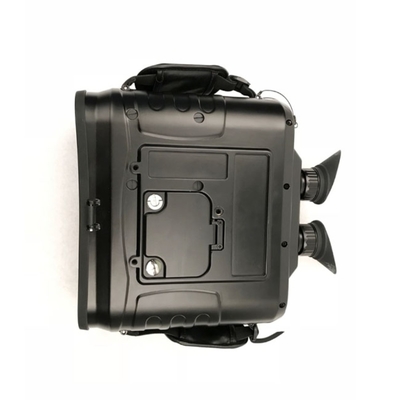

GPS, Electronic Compass, Laser Ranging Thermal Imaging Cooled Binoculars
Parameter
| Specification of cooled thermal imaging binocular | |
| Sensor type | cooled FPA |
| Resolution | 320*256 |
| Wavelength | 3-5μm |
| Pixel pitch | 30μm |
| NETD | 25MK./@25℃ |
| MRTD | ≤0.18K |
| Frame rate | 50HZ |
| Cool down type | <6min |
| Lens | f=20-200mm F#4.0 |
| Focus | Auto/manual |
| FOV | 2.75°x2.2°~18.3°x14.7° |
| Electronic zoom | 1x~4x |
| Image control | White/black polarity;auto,manual gain, |
| Day/Night imaging | |
| Sensor type | 1/2' Low luminance camera |
| Resolution | 720TVL |
| Frame rate | 25HZ |
| Lens | f=50mm |
| Focus | f=50mm |
| Working luminance | 0.001lux |
| Display | |
| Display type | OLED |
| Resolution | 1024x768 |
| Reticles luminance | Customized |
| GPS | |
| GPS | GPS,SNMS |
| GPS accuracy | ≤10m. |
| Target geolocation | opitions |
| DMC | |
| Type | Digital Compass |
| Accuracy | ≤1°(Heading) |
| LRF | |
| Type | 1.54μm |
| Eye safe | Eye safe Class1 |
| Min.distance | 100m |
| Max.distance | 5Km(atmosphere visibility>3.5km) |
| Accuracy | ≤2m |
| Frequency | 20ppm |
| System | |
| Standby | Yes |
| Video out | BNC PAL |
| Recoding memory | 32G |
| Working temp. | -30℃/55℃ |
| Waterproof | IP67 |
| Drop test | 1.5m |
| interface | USB2.0 |
| Power | +12v~+16v |
| Working time/cycle | 4h(20℃) |
| Battery type | Li-ion |
| External power | +24v |
| Tripod connection | 1/4‘ |
| Included cables | Batteries,1charger,AC/DC adaptor,connection cable,hard case |
Features
