| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Model: | HB6F-1 | Size: | 205mm*160mm*70mm |
|---|---|---|---|
| Weight: | ≤1.3kg(including Battery) | Magnification: | 2X |
| Effective Visual Distance: | 1.9km | Operating VoltageFinder Distance: | 7.2V |
| Sensor: | Uncooled LWIR FPA | Positioning System: | Beidou/GPS |
| High Light: | 2X Infrared Thermal Imaging Binoculars,800×600 Thermal Imaging Binoculars,Uncooled LWIR FPA Outdoors Telescope |
||

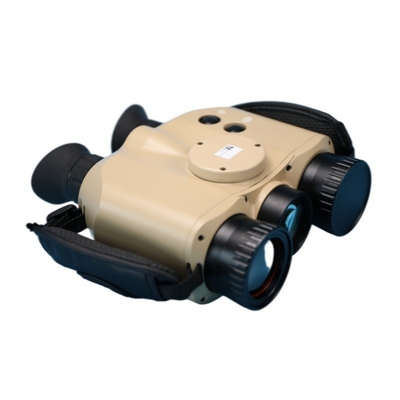

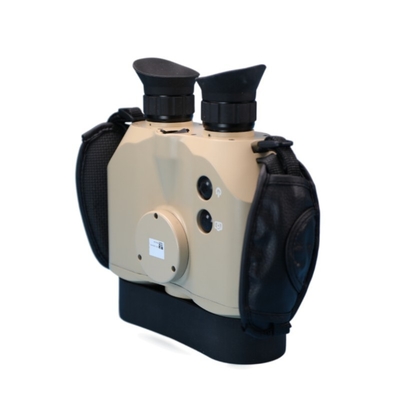

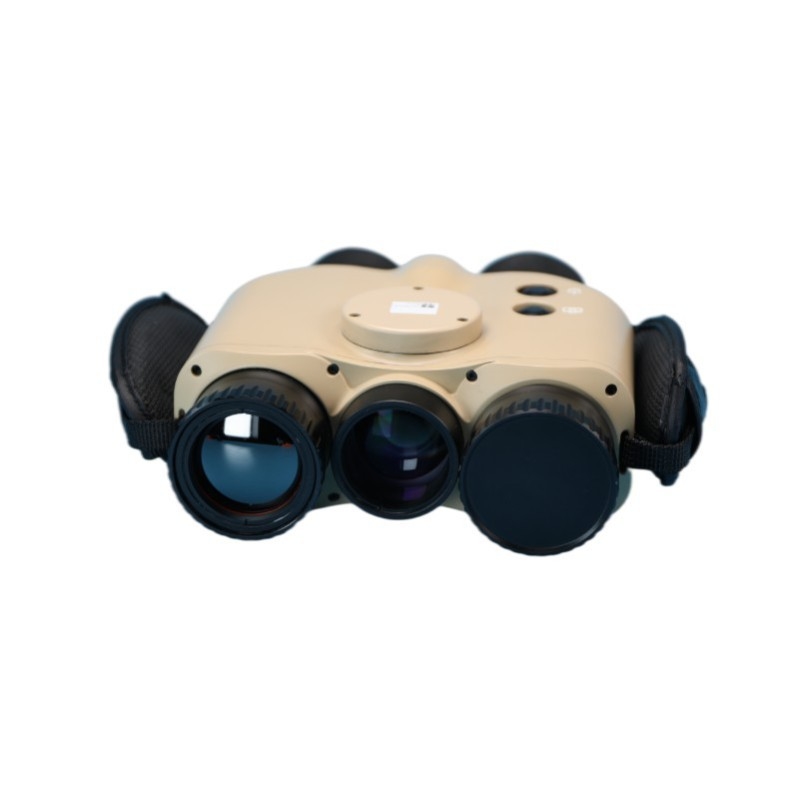

Infrared thermal imaging binoculars military security monitoring
Parameter
| Detector and lens | |
| Resolution | 640×512 |
| Detector pitch | 17μm |
| NETD | ≤45mK@25℃ |
| Spectral Range | 8μm～14μm |
| Frame Frequency | 25Hz |
| Focal Length | 37.8mm |
| Focus | Manual |
| Low-level-light(CCD)and lens | |
| Resolution | 800×600 |
| Detector pitch | 18μm |
| Frame Frequency | 25Hz |
| Focal Length | 40mm |
| Focus | Fixed |
| Image display | |
| Display | 0.39″OLED, 1024×768 |
| Digital zoom | 2x |
| Image adjustment | Auto＆Manual shutter correction;brightness;contrast;polarity;image magnification |
| Detection and identification range | |
| Detection range | Man 1.7m×0.5m:1200m |
| Vehicle2.3m:1700m | |
| Identification Range | Man 1.7m×0.5m: 400m |
| Vehicle2.3m:600m | |
| Storage of file | |
| Storage of image | BMP |
| Storage of video | AVI |
| Storage card | 32G TF |
| Interface | |
| Video out | Q9 |
| Digital interface | USB |
| Camera Control | RS232 |
| Tripod mounting | Standard,UNC ¼"-20 |
| Others | |
| Range of visual adjustment | -4°～+4° |
| Angle shows | Electronic compass |
| Positioning system | Beidou/GPS |
| Wireless transmission | WiFi |
| Power supply | |
| Battery | Two 18650 chargeable lithium batteries |
| Starting up | Long press about 5s |
| Starting time | About 10s |
| Continuous operation time | ≥3.5h |
| Environmental data | |
| Operating Temperature | -40℃～+50℃ |
| Physical data | |
| Weight | ≤1.30kg(including two 18650 lithium batteries ) |
| Size | 205mm×160mm×70mm |
Features
