| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Model: | S763 | Brightness/Gain: | Auto/Manual |
|---|---|---|---|
| Laser Rangefinder: | Measuring Range 50m~5Km | Positioning System: | Beidou/GPS |
| Target Information Positioning: | ≤20m(CEP), Observation Distance 2Km | Diopter Adjustment: | Yes |
| External Video: | PAL | Storage Temperature: | -40℃- +70℃ |
| High Light: | OEM Thermal Imaging Night Vision Goggles,4x Thermal Imaging Binocular,IP67 Military Night Vision Goggles |
||

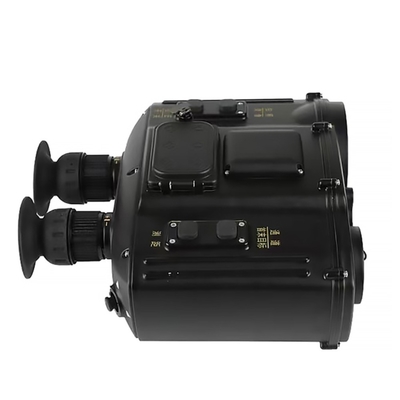

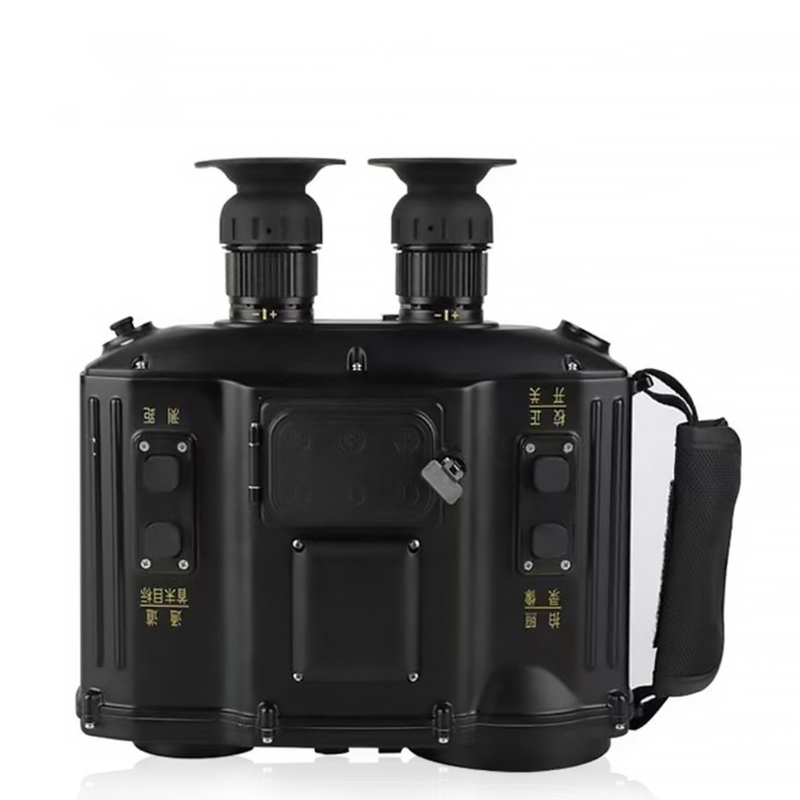

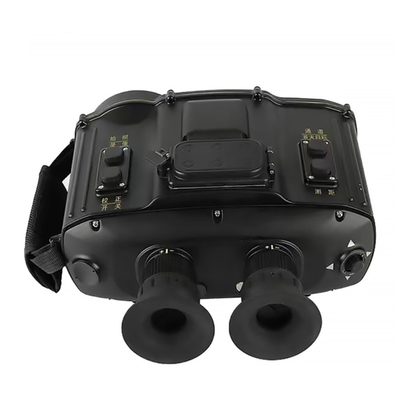

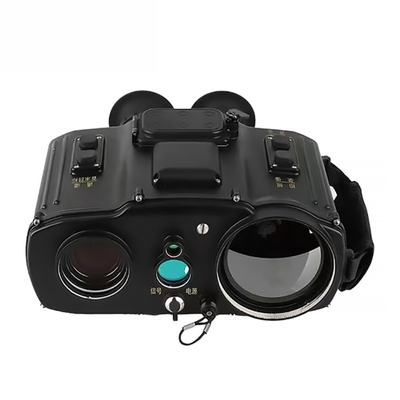

Best Quality Factory OEM Thermal Imaging Binocular Military Night Vision Goggles
Parameter
| IR Thermal Detector Type | Uncooled FPA |
| Spectral Range | 8~14um |
| Detector Resolution | 640x512 |
| Lens | 73mm / F1.2 |
| FOV | 6°x4.2° |
| NETD | 50mk@30℃ |
| Frame rate | 50HZ |
| Focusing method | Electric focus |
| Digital Zoom | 4x |
| Visible Optical Camera | |
| Sensor | 1/2.9″ CMOS |
| Pixel | 1920(H)×1080(V) |
| Field of view | 3°× 2.2°~12°× 8.8° continuous zoom lens |
| Focus | Auto or manual |
| Brightness/Gain | Auto/Manual |
| Electronic compass | Angle measurement accuracy Azimuth angle 0.5°, pitch angle 0.3° |
| Laser rangefinder | Measuring range 50m~5Km |
| Positioning system | Beidou/GPS |
| Target information positioning | ≤20m(CEP), observation distance 2Km |
| Display | HD OLED binocular display (1280*1024), 0.61 inch |
| Polarity | Black-hot, White-hot, Red-hot, Iron hot |
| Diopter adjustment | Yes |
| Video and photo playback | Local infrared and visible real-time recording and local playback |
| Battery type | 18650 universal battery |
| Operating Time | 6 Hours continuous |
| Battery charging | Special charger |
| External video | PAL |
| USB | Yes |
| Operation temperature | -30℃- +55℃ |
| Storage temperature | -40℃- +70℃ |
| IP ratings | IP67 |
| Weight | 1.8Kg |
| Size | 210mm x 190mm x 85mm |
| Used for | Night Vision,Searching,Scout |
| Detection Distance | Human 1.5km / Vehicle 4km |
Features
• Using high-sensitivity infrared detection chip, 640*512 pixels, long-focus infrared lens, the recognition distance of people>1.5km; the recognition distance of medium-sized vehicle s>4km
• Using high-definition 1920*1080 resolution continuous zoom visib le light camera, and with fog-through mode,optical zoom, the recognition distance of people> 3km, the reco gnition distance of medium-sized vehicles> 5km
