| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| IR Resolution : | 384x288 | Len : | 19mm F1.0 |
|---|---|---|---|
| Display: | 1.44" 640x480 EVF | Color Palettes: | IRON/GREY/ HOT RED/ COLD BLUE |
| Laser / Foodlight : | Class2 / White/LED Floodlight | Language Selection : | English, Chinese, French, German, Spanish |
| High Light: | RoHS Infrared Thermal Night Vision Goggles,Night Vision Goggles Imager 384x288,50Hz Handheld Night Vision Goggles |
||

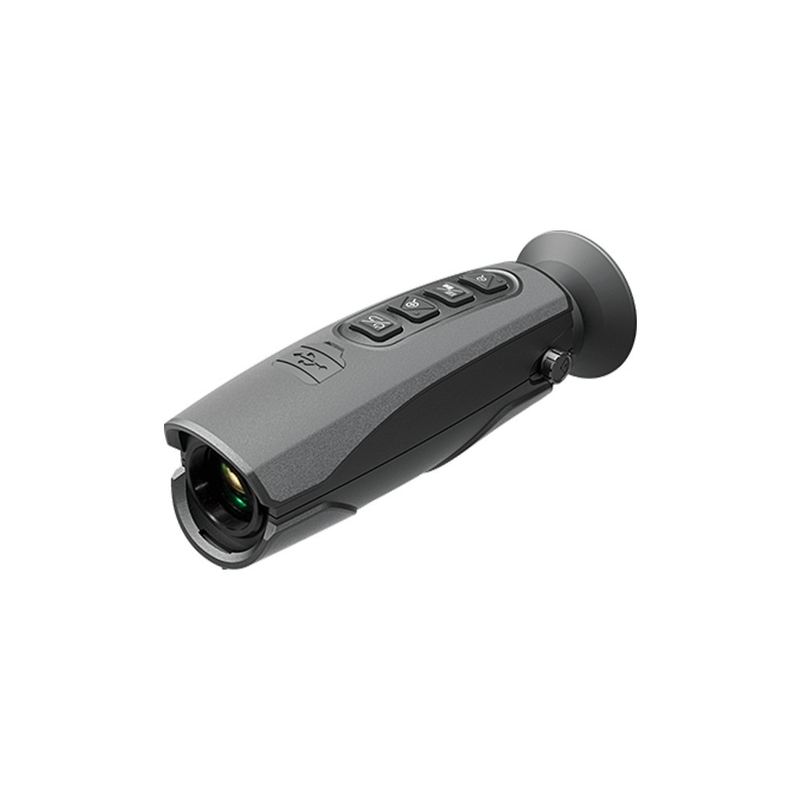

Handheld Thermal Imaging Infrared Thermal Night Vision Goggles High Quality Imager T-72 384x288
Parameter:
| Specifications | T-72 |
| Imaging and optical data | |
| IR resolution | 384x288 |
| Field of View (FOV) | 17°x12° |
| Spatial resolution | 0.77mrad (IFOV) |
| Thermal sensitivity/NETD | < 0.05°C @ +30°C (+86°F) / 50 mK |
| Image frequency | 50Hz |
| Len | 19mm F1.0 |
| Image presentation | |
| Display | 1.44" 640x480 EVF |

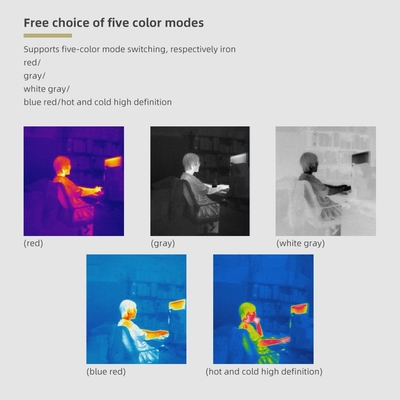

| Color palettes | IRON/GREY/ HOT RED/ COLD BLUE |
| Set-up | |
| Laser / foodlight | class2 / white/LED floodlight |
| Set-up commands | Local adaptation of units, language, date and time formats, information of camera |
| Language selection | English, Chinese, French, German, Spanish |
| Storage of videos/images | |
| Storage media | 4Gbytes eMMC internal |
| Video storage format | Standard MPEG-4, 640x480@30fps, on memory card <60 minutes |
| Image storage format | Standard JPEG, including measurement data, on |
| memory card > 1000 pictures | |
| Data communication interfaces | |
| USB interface | Data transform between camera and PC |
| Remote control, live video | |
| Wi-Fi connectivity | Wi-Fi connectivity allows to send images and data to |
| mobile devices remote control, live video | |
Features:
