| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Model: | S1 | Resolution: | 240×180 |
|---|---|---|---|
| Screen: | 1.3 Inch Square (240*240) LCD Screen | Start Time: | ≤5s |
| Working Temp: | -10℃- +50℃ | Storage Temp: | -30℃- +60℃ |
| Working Time: | 6 Hours Continuous | Palette: | Black Hot / White Hot / Iron Hot / Red Hot / Amber Etc.. |
| High Light: | Thermal Imaging Range Monocular 240×180,Uncooled FPA Thermal Imaging Range Monocular,8x Handheld Mobile Phone Telescope |
||
Handheld Hunting Thermal Imaging Range Monocular Remote
Parameter:
| Item | S1 | |
| Detector | Type | Uncooled FPA |
| Resolution | 240×180 | |
| Image | FOV | 23.4°×17.5° |
| Focal Length | 10mm | |
| NETD | 60mk@30℃ | |
| Focus | Fixed | |
| Digital zoom | 1x,2x,3x,4x,5x,6x,7x,8x | |
| Spectral range | 8-14μm | |
| Crosshair | Yes | |
| Palette | Black hot / white hot / iron hot / red hot / amber etc.. | |
| Start time | ≤5s | |
| Display | Screen | 1.3 inch square (240*240) LCD screen |
| Power supply | Type | CR123 AA Battery |
| Working time | 6 hours continuous | |
| Environmental parameters | Working Temp | -10℃- +50℃ |
| Storage Temp | -30℃- +60℃ | |
| IP ratings | IP66 | |
| Physical parameters | Weight | <0.5Kg |

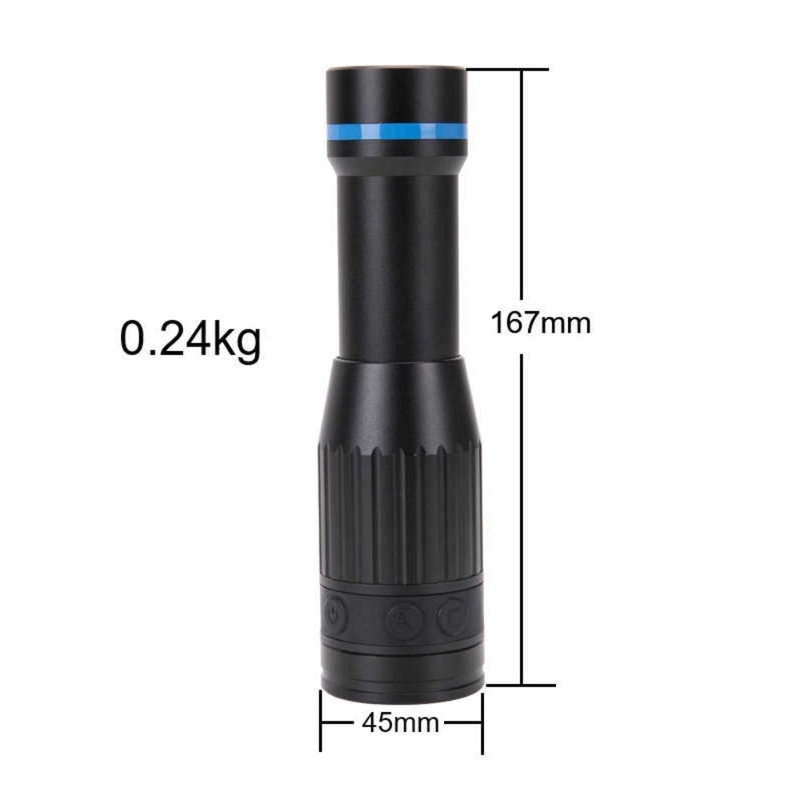

| Dimension | ≈Φ45×167mm | |
| Detection distance | Human | 320m |
| Vehicle | 450m | |
| Recognition distance | Human | 160m |
| Vehicle | 220m | |
Features:
1.Built-in moveable crosshair
2.4× Digital zoom
3.Fast boot in 3 seconds.
