| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Type: | Monocular | Lens System: | 25mm/19mm |
|---|---|---|---|
| Focus: | Fixed | Cursor: | Yes |
| Polarity: | Black/White/ Red-hot | BATTERY: | Rechargeable Li-ion |
| Working time: | 5h | Storage temp: | -40℃- +60℃ |
| High Light: | 25mm Lens Thermal Imaging Monocular,384×288 Thermal Imaging Monocular,4X Night Vision Outdoor Telescope |
||

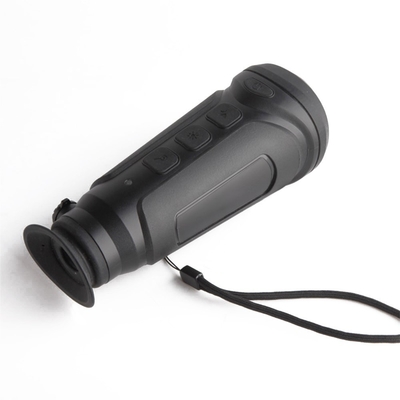

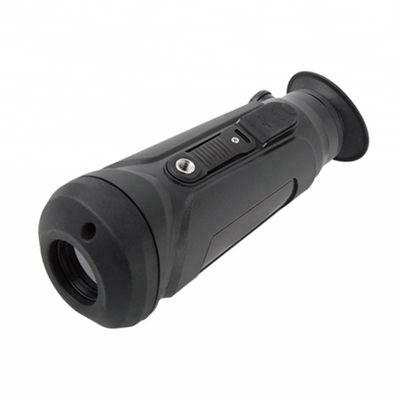

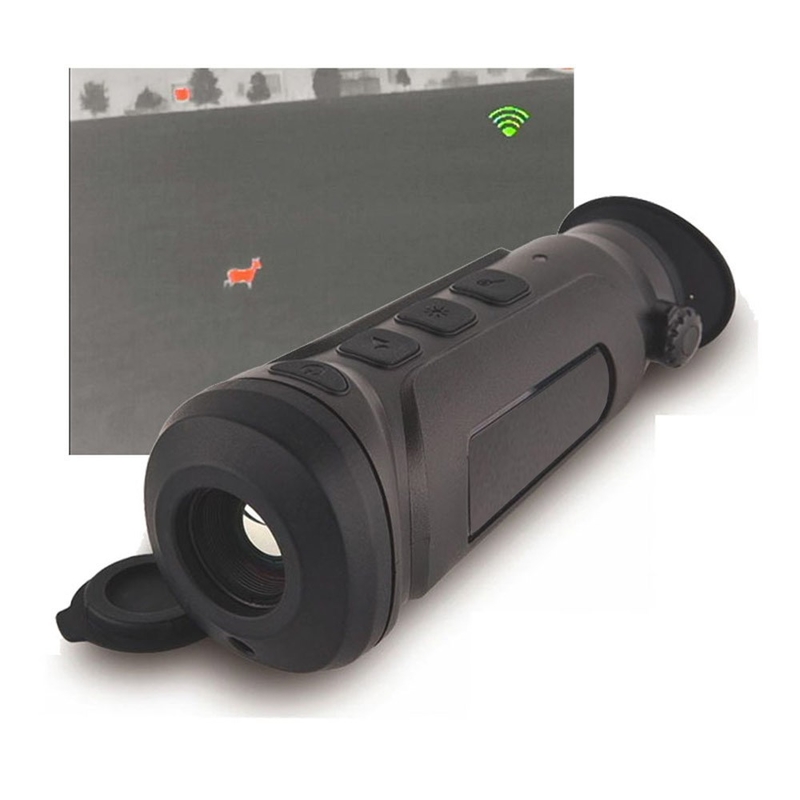

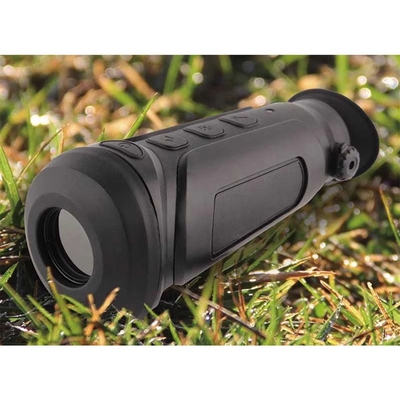

Outdoor Telescope Thermal Imaging Monocular Thermal Imager Long Range Night Vision Outdoor Telescope
Parameter:
| Model | MH-325 | MH-319 | |
| Detector | Detector type | Uncooled FPA bolometer | |
| Resolution | 384×288 | ||
| Image | FOV | 21.7°x16.4° | 29°x21.7° |
| Focal length | 25mm | 19mm | |
| NETD | 80mk@30℃ | ||
| Frame rate | 50HZ | ||
| Focus | Fixed | ||
| Electronic zoom | 2X,3X,4X | ||
| Spectral range | 8-14μm | ||
| Transmission | WIFI image | / | |
| transmission | |||
| for cellphone APP | |||
| real-time view, | |||
| recording, capture, | |||
| playback | |||
| Cursor | Yes | ||
| Laser point | Yes | ||
| Display | Display | Color LCD 640*480 | |
| Polarity | Black/White/Red-hot | ||
| Visibility adjustment | Adjust by rotary knob | ||
| Power | Battery type | rechargeable Li-ion | |
| Working time | 5h | ||
| Charger | USB or power bank | ||
| External power | DC5V/2A(Micro USB) | ||
| Environment | Working temp | -20℃- +50℃ | |
| Storage temp | -40℃- +60℃ | ||
| Protection Level | IP66 | ||
| Anti-dropping | 1 M | ||
| Physical characteris | Weight | <0.5Kg | |
| tics | Dimension | <190*70*70mm | |
| Interface | Power port | Yes | |
| Video output | PAL | ||
| USB | External charge | ||
| Detection distance | Human | 550 m | 435 m |
| Vehicle | 750 m | 595 m | |
| Recognition distance | Human | 270 m | 200 m |
| Vehicle | 380 m | 295 m | |
Features:
