| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Model: | C3320 | Product Weight: | 8kg |
|---|---|---|---|
| Resolution: | 320*256 | Wavelength: | 3-5μm |
| Pixel Pitch: | 30μm | FOV: | 2.75°x2.2°~18.3°x14.7° |
| Magnification: | 1x~4x | Frame Rate: | 50Hz |
| High Light: | Thermal Imaging Cooled Binoculars,Laser Ranging Thermal Imaging Cooled Binoculars,Thermal Imaging Night Vision 4x |
||

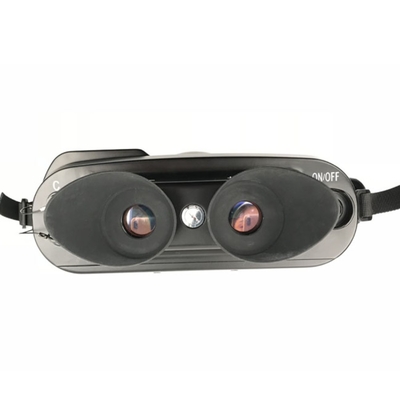

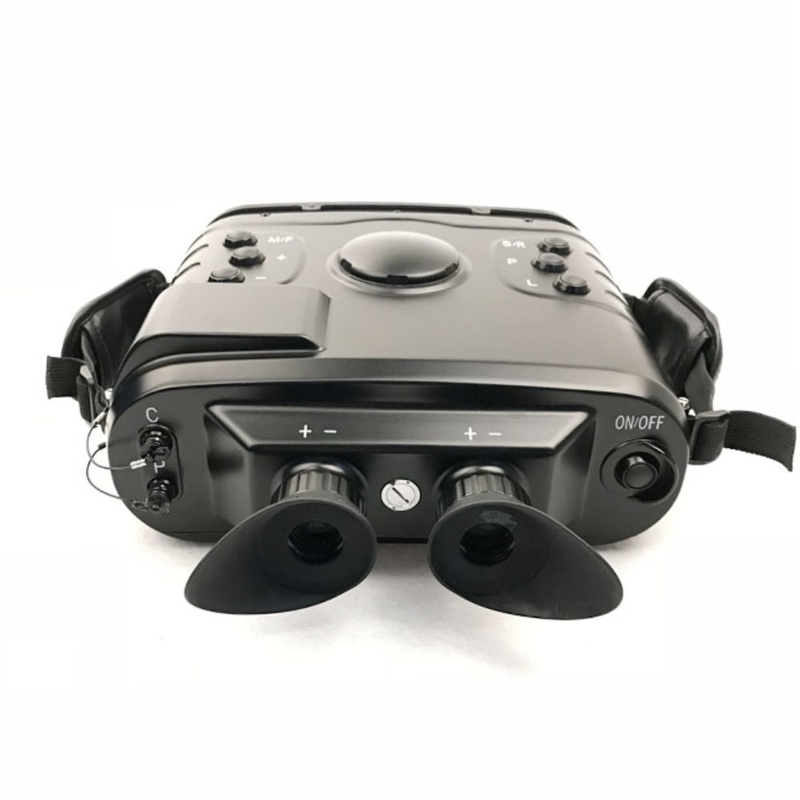

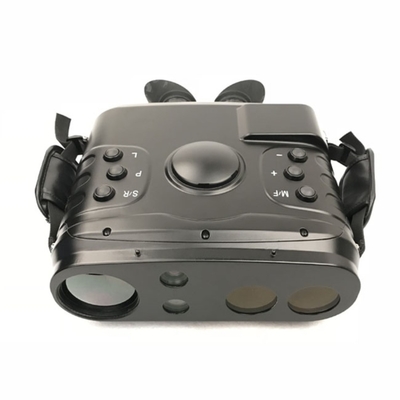

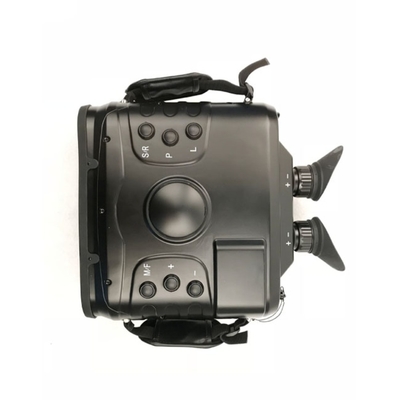

Thermal Imaging Cooled Binoculars With GPS, Electronic Compass, Laser Ranging
Parameter:
| Specification of cooled thermal imaging binocular | |
| Sensor type | cooled FPA |
| Resolution | 320*256 |
| Wavelength | 3-5μm |
| Pixel pitch | 30μm |
| NETD | 25MK./@25℃ |
| MRTD | ≤0.18K |
| Frame rate | 50HZ |
| Cool down type | <6min |
| Lens | f=20-200mm F#4.0 |
| Focus | Auto/manual |
| FOV | 2.75°x2.2°~18.3°x14.7° |
| Electronic zoom | 1x~4x |
| Image control | White/black polarity;auto,manual gain, |
| Day/Night imaging | |
| Sensor type | 1/2' Low luminance camera |
| Resolution | 720TVL |
| Frame rate | 25HZ |
| Lens | f=50mm |
| Focus | f=50mm |
| Working luminance | 0.001lux |
| Display | |
| Display type | OLED |
| Resolution | 1024x768 |
| Reticles luminance | Customized |
| GPS | |
| GPS | GPS,SNMS |
| GPS accuracy | ≤10m. |
| Target geolocation | opitions |
| DMC | |
| Type | Digital Compass |
| Accuracy | ≤1°(Heading) |
| LRF | |
| Type | 1.54μm |
| Eye safe | Eye safe Class1 |
| Min.distance | 100m |
| Max.distance | 5Km(atmosphere visibility>3.5km) |
| Accuracy | ≤2m |
| Frequency | 20ppm |
| System | |
| Standby | Yes |
| Video out | BNC PAL |
| Recoding memory | 32G |
| Working temp. | -30℃/55℃ |
| Waterproof | IP67 |
| Drop test | 1.5m |
| interface | USB2.0 |
| Power | +12v~+16v |
| Working time/cycle | 4h(20℃) |
| Battery type | Li-ion |
| External power | +24v |
| Tripod connection | 1/4‘ |
| Included cables | Batteries,1charger,AC/DC adaptor,connection cable,hard case |
Features:
1.High resolution thermal imager,high resolution visual camera,work all day,see through glare;
2.GPS,electrical compass,eye-safe laser range finder
3.The output imager can be displayed on its color OLED display and alternatively on a control&display units connected to a host machine which makes it suitable for comples maneuvers
4.User friensly,easy to operate
5.Different palette ooptions for the image display make it easier to detect and identify targets in different circumstances
