| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Warranty: | 1 Year | Model Number: | NVS06T-50 |
|---|---|---|---|
| Weight: | 850g | Type: | Monocular |
| Effective Visual Distance: | 2m~1100m | Operating Voltage: | DC12V |
| Size: | 205x75x65mm | Objective Lens Diameter: | 50mm |
| Highlight: | DC12V Night Vision Thermal Imaging Scope,RoHS Remote Control Steaming Thermal Scope |
||

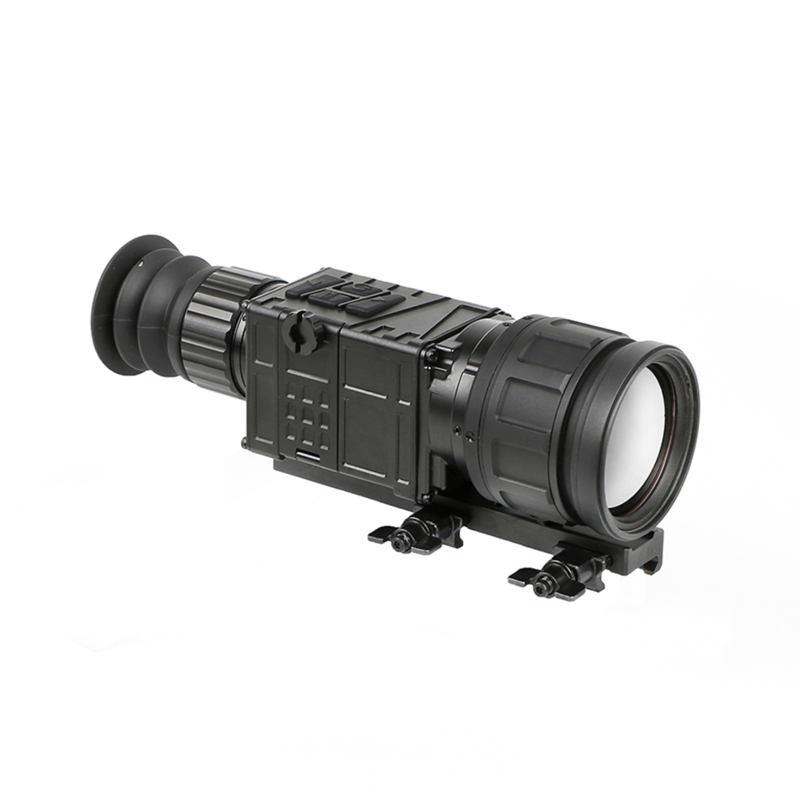

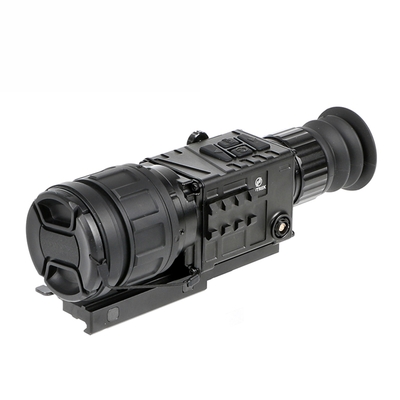

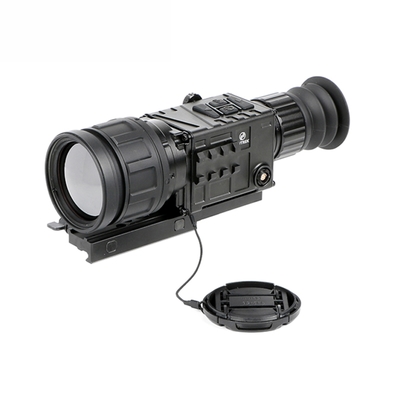

Remote Control And Steaming Thermal Scope Night Vision Thermal Imaging Scope Thermal Scope Monocular
Parameter:
| Optical Magnification | 3.5x |
| Electronic Zoom | 1-4X |
| System Magnification | 3.5-14x |
| Objective Aperture | 50mm |
| Detercor Type | ULIS Asi |
| Pixel | 384x288 |
| Pixel Pitch | 17μm |
| NETD | ≤40mk |
| Field of View (±5%) | 7.5°×5.5° |
| Frame Rate | 50Hz |
| Focus | Manual |
| Display | AMOLED 800×600 |
| Exit-pupil Distance | 60mm |
| Brightness/Contrast | Adjustable |
| Imaging Palette | Black Hot / White Hot |
| Battery Type | CR123A x2 |
| Working Hour | 3.5H |
| Anti-Vibration | MIL-STD-810F |
| Height of the Scope Axis Above Rail | 47.5mm |
| Detection Distance - Human | 1650m |
| Detection Distance - Vehicle | 3200m |
| Recognition Distance - Human | 600m |
| Recognition Distance - Vehicle | 1100m |
| Laser Rangfinder | 10m ~ 600m ± 2m (Optional Module) |
Features:
* Built per MIL-SPEC for use in harsh hunting/shooting conditions
* Large aperture objective for maximum thermal radiation collection
* Utilizes sensitive ULIS Asi 17μm 384x288 pixel detector
* Convenient ZERO adjustment with multiple reticle options
* Tool-free picatinny mount for easy weapon attachment
