| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Warranty: | 2 Year | Model Number: | TU420 |
|---|---|---|---|
| Weight: | 930g | Type: | Monocular |
| Effective Visual Distance: | 1700 Meter | Focus: | Manual |
| Size: | 367*107*69mm | Frame Rate: | 50HZ |
| High Light: | TU420 Thermal Imaging Scope,25mm Lens Thermal Imaging Scope |
||

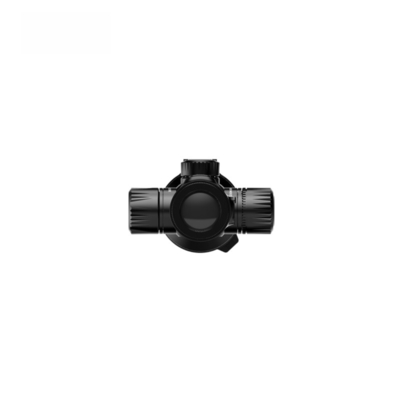

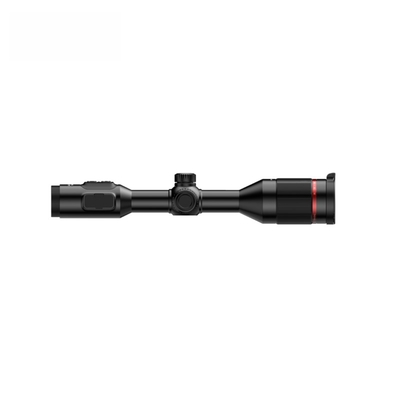

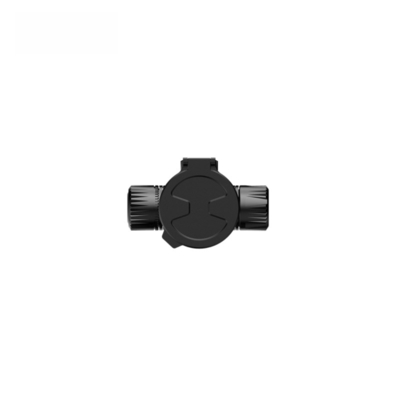

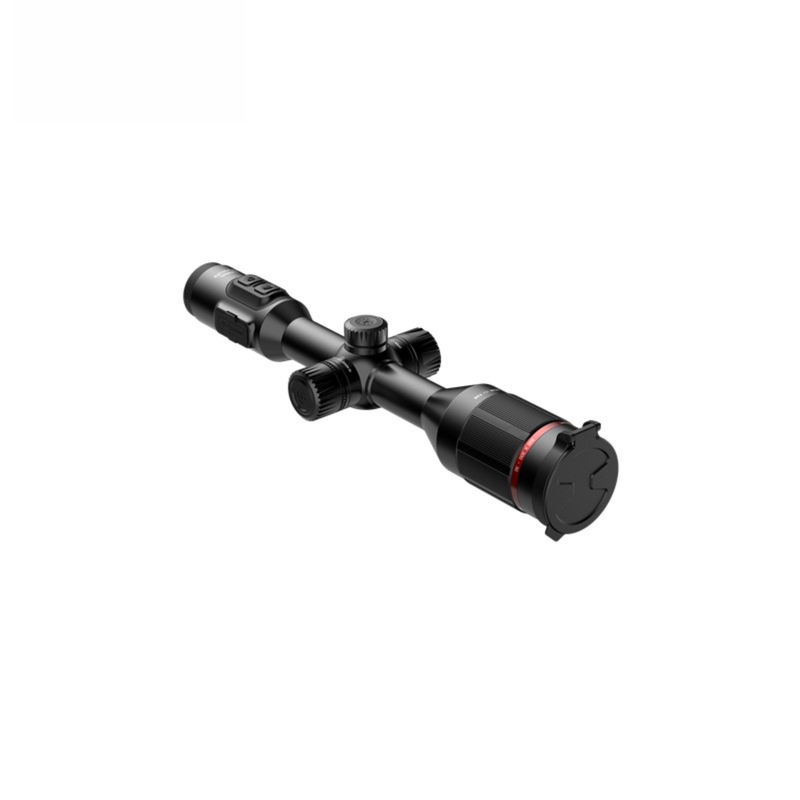

The Latest Traditional Appearance TU420 Thermal Imaging Scope With 25mm Lens
Parameter:
| Model | TU420 | TU430 | TU450 |
| Detector | |||
| Detector Type | 400×300@17μm, VOx | ||
| Spectral | 8μm～14μm | ||
| NETD | ≤50mk | ||
| Lens | |||
| Focal Length | 25mm | 35mm | 50mm |
| Focusing | Manual | ||
| FOV | 15.49°×11.65° | 11.1°×8.33° | 7.78°×5.84° |
| Display | |||
| Display Screen | Full-color 0.39'OLED screen,1024×768 | ||
| Eyepiece | Pupil distance of eyepiece 48mm,Eyepiece magnification 14× | ||
| Magnification | 1.6×~6.4× | 2.3×~9.2× | 3.2×~12.8× |
| Imaging | |||
| Frame Rate | 50Hz | ||
| Digital Zoom | 1×~4× smooth zoom | ||
| Scene Modes | Enhance, highlight, natural | ||
| Color Palettes | White hot, black hot,customized red hot, green hot, iron red, blue heat | ||
| Picture-in-picture | on/off, the position is adjustable | ||
| Functions | |||
| Wi-Fi/APP | Support Wi-Fi to share pictures and videos, connect to APP (IOS & Android) to control the device remotely | ||
| Compensation Modes | Scene compensation, shutter compensation, automatic compensation | ||
| Zero Calibration | 50m/100m/200m/300m/500m | ||
| Gun Type Selection | 10 sets of zero calibration configurations can be saved, no need to recalibrate for different instruments | ||
| Reticle | 10 reticle styles, 6 colors, 10 levels of brightness | ||
| Others | Photo taking, video recording, hotspot tracking, Stadiametric rangefinder | ||
| Power Supply | |||
| Battery Type | 1× internal Battery + 1× external battery, rechargeable, change external battery without power cut off | ||
| Battery Operating Time | Battery continuous working time ≥ 10hrs | ||
| Interface | |||
| USB | Type-C, It can supply external power and charge, and can read the data of memory card | ||
| Video Interface | Micro HDMI | ||
| Environmental Characteristics | |||
| Operating Temperature | -30 ℃ ~ 50 ℃ (External power supply is required below -20℃) | ||
| Storage Temperature | -45℃~70℃ | ||
| Humidity | Working and storage 10%～95%, non condensing | ||
| Shock | 500G/1ms | ||
| Vibration | 10Hz～150Hz～10Hz 0.15mm IEC60068-2-6 | ||
| IP level | IP67 | ||
| Certificate | RoHS, CE, FCC, EAC, UN38.3 (Battery certificate) | ||
| Physical Characteristics | |||
| Internal Storage | 16G | ||
| Weight(excl battery) | 930g | 940g | 950g |
| Dimensions (excl eye mask) | 367×107×69mm | 367×107×69mm | 377×107×69mm |
| Package Contents | |||
| Standard | Thermal Imaging Riflescope, Lens Cover, Adapter, Battery, Charger, TYPE-C Data Cable, Micro HDMI Video Cable, Eye Mask, Picatinny | ||
| Tube Clip×2, Pouch, Shoulder strap, Quick Start Guide | |||
| Optional | Battery, Remote Control | ||
| Detection Range | |||
| Human:1.8m×0.5m | 700m | 1000m | 1400m |
| Vehicle:2.3m×2.3m | 1700m | 2400m | 3000m |
| Recognition Range | |||
| Human:1.8m×0.5m | 350m | 500m | 700m |
| Vehicle:2.3m×2.3m | 700m | 1000m | 1400m |
Features:
* HD OLED display, with 1x~4x smooth zoom, provides a comfortable visual experience
* 10 sets of zero calibration configurations can be saved, no need to recalibrate for different instruments
* The reticle density can be zoomed in synchronously with the image to ensure the aiming accuracy 10 kinds of reticles, 6 kinds of reticle colors, 10 grades of reticle brightness, for your selection Support photo and video, record wonderful moments at any time,easy to share
* Remote control by WIFI or Bluetooth, for diversified usage
* Rugged and durable, IP67 rating, working temperature -30°C~50°C, no fear of severe weather
* 10hrs super long duration time, changing battery without turn off, ensuring full day operations
