| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Model: | MH850 | Spectral range: | 8~12μm |
|---|---|---|---|
| Resolution: | 640x480@17μm | Focal length: | 85mm(F# 1.0) |
| E-Zoom: | 2x / 4x | FOV: | 7.3°× 5.5° |
| NETD: | ≤ 60mK | Frame Rate: | 50Hz |
| High Light: | Infrared Thermal Imaging Night Vision,85mm Thermal Imaging Night Vision,Long Range Military Army Binoculars |
||

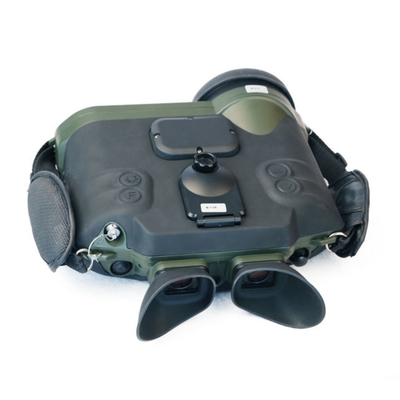

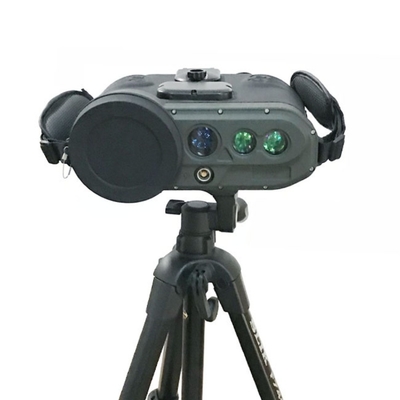

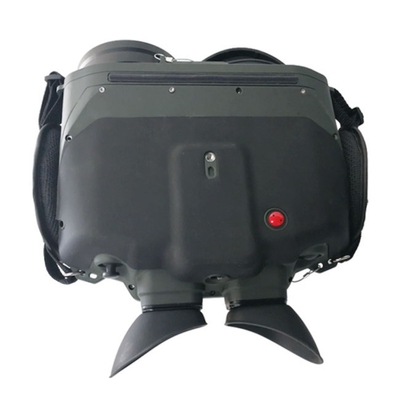

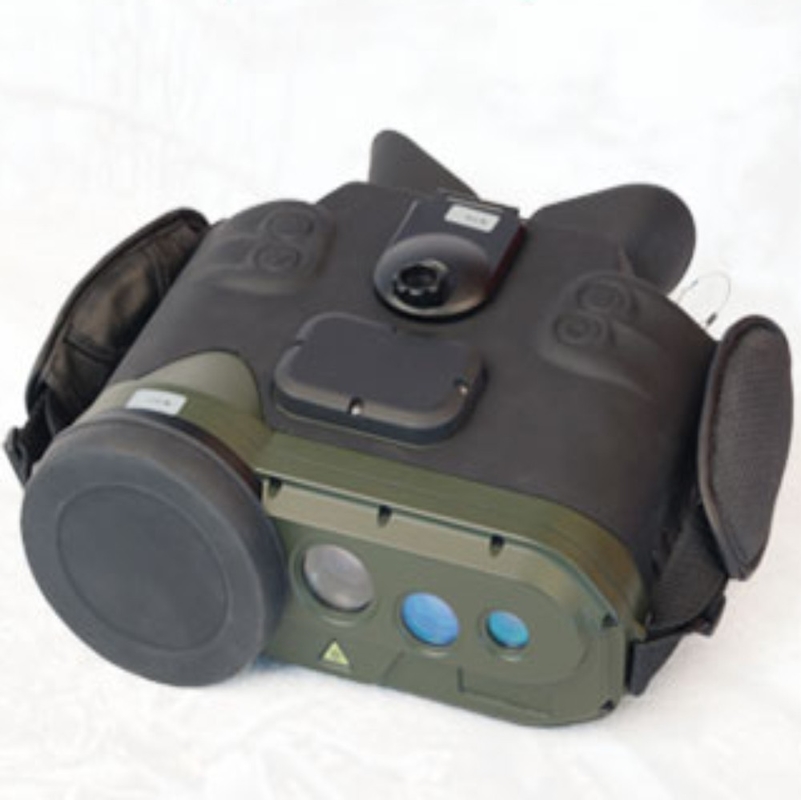

New Arrival Night Vision Infrared Thermal Imaging Long Range Military Army Binoculars
Parameter:
| Detector | Uncooled FPA Detector |
| Spectral range | 8~12μm |
| Resolution | 640x480@17μm |
| Frame rate | 50Hz |
| NETD | ≤ 60mK |
| Focal length | 85mm(F# 1.0) |
| Focus | Auto focusing, 8m to infinity |
| FOV | 7.3°× 5.5° |
| Micro display | 0.6 inch OLED/(800×600) |
| Start up time | < 5S |
| E-Zoom | 2x / 4x |
| Pole | white hot/black hot(optional pseudo-color) |
| Contrast | Auto |
| Brightness | Manual |
| Reticle | moveable / storable / graphic editable |
| Laser Range Finder | |
| Wave Length | 1.55μm (Eye Safety) |
| Measure distance | 50~4000m(Max 5000m) |
| Accuracy | <±2m |
| Accuracy rating | > 98% |
| Visible Light Parameters | |
| Sensor | 1/2' Ultra low light night vision |
| Visible light | 700TVL |
| Field of view | 9.0°x 7.0° |
| Working luminance | 0.001Lux(black & white) |
| Focal length | f =35mm |
| Specialty | D-WDR, 3Ddenoise,automatic shutter |
| GPS/DMC | |
| Accuracy | CEP< 5m |
| DMC | 3D heading accuracy less than1° |
| WIFI | YES |
| Video recording | |
| Photo format | JPEG |
| Video format | 640×480@50Hz |
| Storage capacity | Standard 16G |
| Recording time | Around 10 hours |
| Interface | USB 2.0 |
| Observation Distance | |
| Man (1.8x0.92m) | Detection: 2500m |
| Recognition: 1000m | |
| Vehicle (2.3x2.3m) | Detection: 4000m |
| Recognition: 1500m | |
Features:
1.MH850 new night vision infrared thermal imaging long-range military binoculars equipped with uncooled thermal imager
2. Eye-safe laser rangefinder, integrated GPS/BDII, digital magnetic compass (DMC) and night vision camera.
3. The system provides silent operation, advanced target positioning and image storage capabilities, and can work normally in various battlefield conditions.
