| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Model Number: | KG510IR N1 | Size: | 160*67*62MM |
|---|---|---|---|
| Weight: | 0.35KG | Magnification: | 4X |
| Operating Voltage: | 3.7V | Spectral Range: | 8μm~14μm |
| Digital Zoom: | 2X, 4X | Focus: | 19/25mm |
| High Light: | 510 N1 Handheld Thermal Imaging Monocular,4X Thermal Imaging Monocular,IP66 Infrared Night Vision Monocular |
||

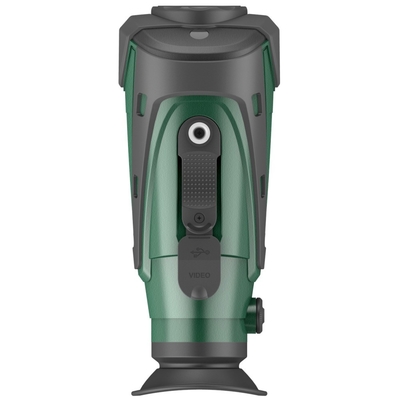

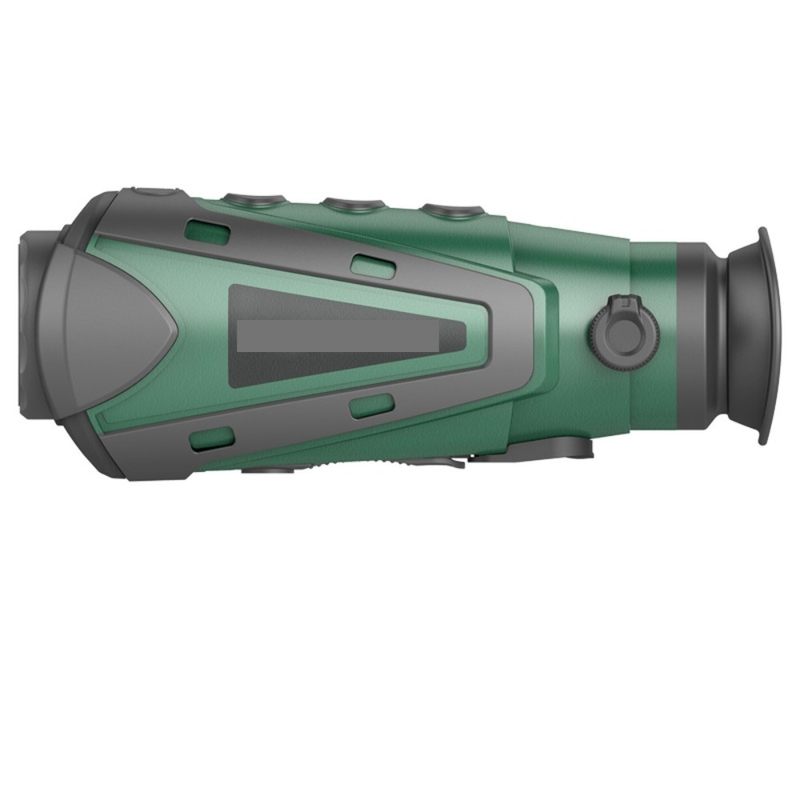

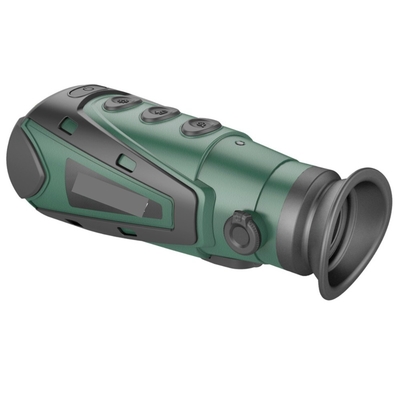

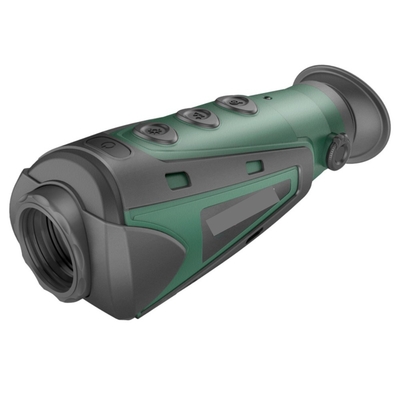

Infrared Night Vision High Frame Rate 510 N1 Handheld Thermal Imaging Monocular
Parameter:
| IR510 N1 | IR510 N1 WIFI | IR510 N2 | IR510 N2 WIFI | |
| Detector | ||||
| Detector Type | 400×300@17μm | |||
| Spectral Range | 8μm~14μm | |||
| Lens | ||||
| Focus | 19mm | 25mm | ||
| Focusing | free | Manual | ||
| FOV | 19.0°×14.5° | 14.6°×11.1° | ||
| Screen | Colorful 0.2″LCOS | |||
| Viewfinder | Monocular, diopter adjustable±4 | |||
| Image | ||||
| Frame | 50Hz | |||
| Digital Zoom | ×2, ×4 | |||
| Color Palette | Black hot, white hot, red hot 1, red hot 2, red hot 3 | |||
| Fuctions | ||||
| Photograph | × | × | × | × |
| Additional functions | Illuminator or laser pointer | Illuminator or laser pointer | Illuminator or laser pointer | Illuminator or laser pointer |
| or neither | or neither | or neither | or neither | |
| Cross cursor | √ | √ | √ | √ |
| Image enhancement | × | √ | × | √ |
| Wi-Fi | × | √ | × | √ |
| Zoom | √ | √ | √ | √ |
| Freeze | √ | × | √ | × |
| Charging indicator | √ | √ | √ | √ |
| Active indicator | √ | √ | × | √ |
| Power | ||||
| Battery | Internal Li-ion battery,3.7V,3200mAh | |||
| Working Time | ≥5h | |||
| Adapter | Standard USB power adapter, max 10W | |||
| Interface | ||||
| USB | Charging | |||
| Video Output | MCX Connector,PAL/NTSC | |||
| Environment Characteristics | ||||
| Working Temperature | -10℃~50℃ | |||
| Storage Temperature | -30℃~60℃ | |||
| Humidity | 10%~95% | |||
| Shock | 10Hz~150Hz~10Hz 0.15mm IEC60068-2-6 | |||
| Encapsulation | IP66 | |||
| Drop | 1m drop | N/A | ||
| Physical Parameter | ||||
| Weight | 350g | 375g | ||
| Size | 160mm×67mm×62mm | 168mm×67mm×62mm | ||
| Package | ||||
| Standard accessories | thermal imager/ power adapter/ USB cable/ video cable | |||
| /lens cap/ wrist strap/ shoulder strap/ soft drawstring bag/ user manual | ||||
| Optional accessories | N/A | 40mm extender lens(FOV:9.3°×7.0°) | ||
| Detection Range | ||||
| Human:1.8m×0.5m | 500m | 700m | ||
| Vehicle:2.3m×2.3m | 1300m | 1700m | ||
| Recognition Range | ||||
| Human:1.8m×0.5m | 300m | 350m | ||
| Vehicle:2.3m×2.3m | 500m | 700m | ||
Features:
