| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Model Number: | CS-1Pro/CS-3+/CS-4 | Size: | 28*21*15CM |
|---|---|---|---|
| Weight: | 0.45kg | Magnification: | 4x |
| Effective Visual Distance:: | 20-390m | Focal Lens: | 15MM |
| Wavelength Range: | 8-14mm | Operating Voltage: | 5V |
| High Light: | Thermal Imager Night Vision Monocular,CS-1Pro Night Vision Monocular,IP66 Hunting Thermal Imaging Monocular |
||

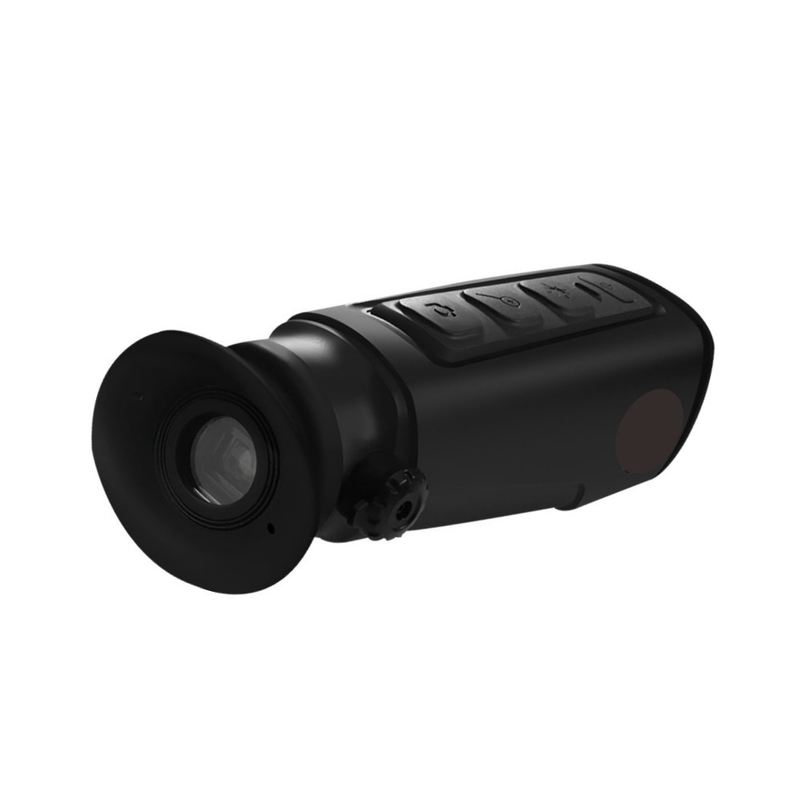

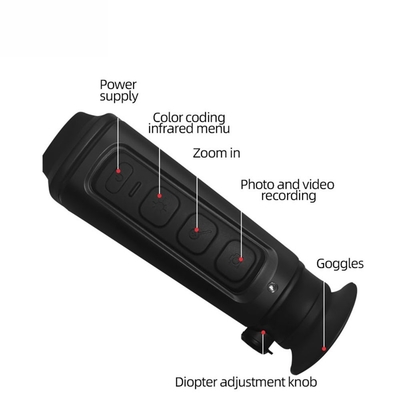

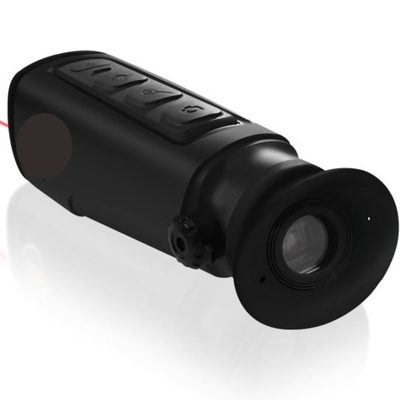

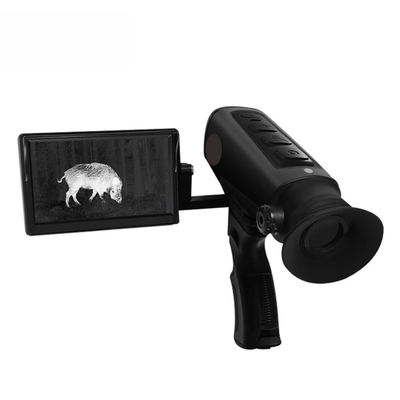

Thermal Imager Night Vision Monocular Hunting Rescue Patrol Search CS-1Pro/CS-3+/CS-4
Parameter:
|
Item
|
CS-1Pro
|
|
|
Type of Detector
|
Uncooled focal plane
|
|
|
Pixels
|
384×288
|
|
|
Field of View
|
15.6° x 11.7" (土5%) /24.9*X18.7(土5%)
|
|
|
Focal Length
|
15mm
|
|
|
Frame Rate
|
50HZ
|
|
|
Focus
|
Fixed,focus lens
|
|
|
Spectral range
|
8-14μ m
|
|
|
Digital zoom
|
1.0~4.0X continuous zoom
|
|
|
Image transmission
|
WiFi real-time image transmission
|
|
|
Cross hair
|
Yes
|
|
|
Photographing and video
|
Yes
|
|
|
Hot pot tracking
|
Yes
|
|
|
Laser indicator
|
Yes
|
|
|
Displayer
|
Color screen 720X540
|
|
|
Working Time
|
5 hours continuous
|
|
|
Power interface
|
Type-C for external charging
|
|
|
Protection Class
|
IP66
|
|
|
Fall
|
1m
|
|
|
Weight
|
<0.4Kg
|
|
|
Size
|
<185X 60X 62mm
|
|
Features:
1. New high-sensitivity, low-power uncooled focal plane detector with better image performance.
2. Small size, easier for long-term observation.
3. Support WIFI image transmission function, mobile APP real-time browsing, video recording, photographing, playback and other operations.
4. Built-in 32G memory card, support photo and video functions.
5. IP66 protection grade, 1 meter drop resistance.
6. Type-C charging interface, supports 9V fast charging.
