| Place of Origin: | China |
| Brand Name: | OEM, ODM All Available |
| Certification: | CE,FC,RoHS |
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 3~7 |
| Payment Terms: | T/T. L/C, Western Union, Money Gram |
| Supply Ability: | 30000PCS/Month |
| Warranty: | 3 Years | Model Number: | TR20 |
|---|---|---|---|
| Weight: | 560G | Type: | Monocular |
| Effective Visual Distance: | 500M | Pixel Size: | 12μm |
| Eyerelief: | 40mm | Field Of View: | 10.5 X 7.9 |
| Highlight: | 35mm Lens Thermal Imaging Monocular,500M Visual Distance Night Vision Goggles,Infrared Hunting Camera Optics With Rangefinder |
||

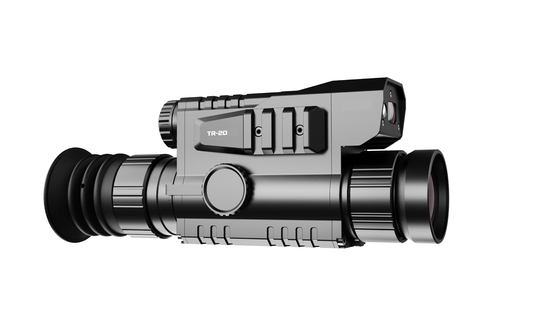

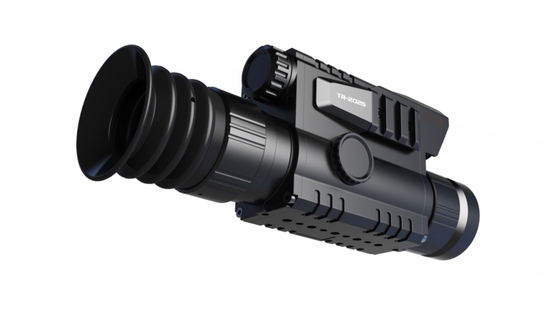

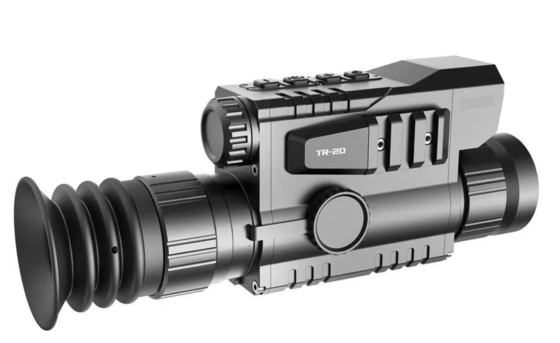

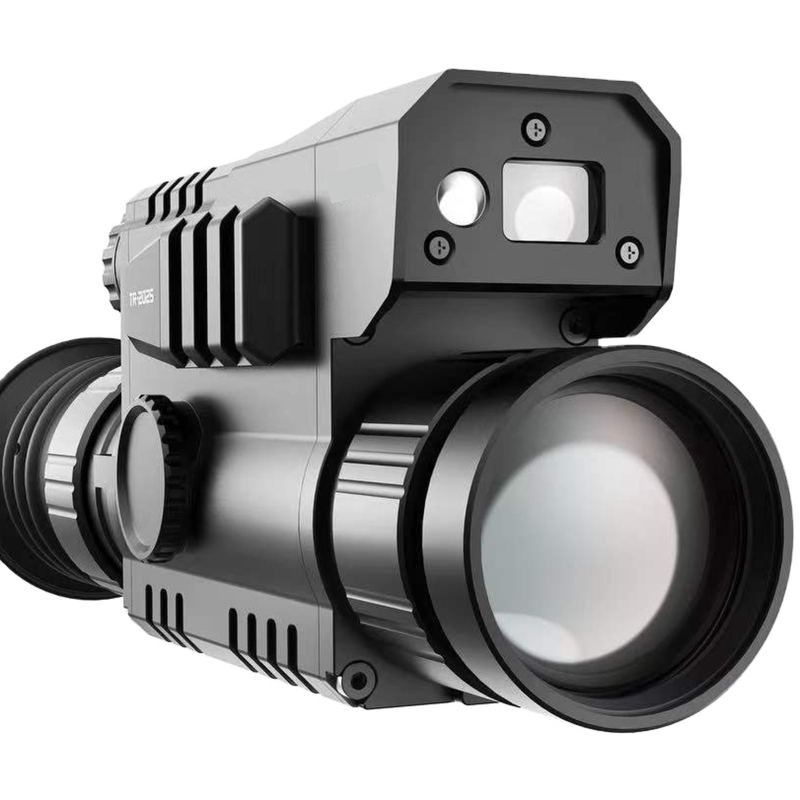

35mm Lens Handheld Thermal Imaging Monocular Night Vision Goggles Infrared Hunting Camera Optics With Rangefinder
Parameter:
| Model | Lens | Lens |
| TR20 | 25mmm | 35mm |
| Resolution,Pixel | 384×288 | 384×288 |
| Refresh Rate | 50Hz | 50Hz |
| Pixel Size, micron | 12μm | 12μm |
| Objective Lens | 25mm/f1.0 | 35mm/f1.0 |
| Magnification | 2.04 - 8.16 x | 2.85 - 11.4 x |
| Digital zoom | 2x,4x | 2x,4x |
| Eyerelief | 40mm | 40mm |
| Field of View (HxV) | 10.5 x 7.9 | 7.5 x 5.7 |
| Dioptre adjustment, dpt | ± 5 | ± 5 |
| Reticle Type | 8-Pattern optional, or “NO reticle” | 8-Pattern optional, or “NO reticle” |
| Reticle Color | 4 colors: White, Black, Red and blue | 4 colors: White, Black, Red and blue |
| Image Palettes | White Hot / Black Hot/ red hot /green hot/ Iron red / Sky | White Hot / Black Hot/ red hot /green hot/ Iron red / Sky |
| Default setting | Yes | Yes |
| Display Resolution | 1280x960 | 1280x960 |
| Built-in Red Dot indicator | Yes | Yes |
| Laser locator | 1mw red dot CAL | 1mw red dot CAL |
| Defective pixel repair | Yes | Yes |
| Hot tracking | Yes | Yes |
| Pictur in picture | Yes | Yes |
| photo & video recording | Yes | Yes |
| Wifi IOS & Android connection | Yes | Yes |
| E-compass | Yes | Yes |
| 3D Gyroscope | Yes | Yes |
| Flashlight | Yes | Yes |
| Battery Type | Li-ion 18650 Rechargeable Battery Replaceable | Li-ion 18650 Rechargeable Battery Replaceable |
| Battery Life (Operating) | 5 hours | 5 hours |
| External power supply | USB type c | USB type c |
| Protection rate | IP66 | IP66 |
| Operating Temperature | -30℃ ... +60 ℃ | -30℃ ... +60 ℃ |
| Storage Temperature | -50℃.. +70 ℃ | -50℃.. +70 ℃ |
| Size (L × W × H),mm / inch | 188.8mm*51mm*74.1mm | 195.3mm*51mm*74.1mm |
| Weight (W/o battery),Kg/ oz | 560g | 560g |
| Housing Materials | Aluminum Alloy | Aluminum Alloy |
Features:
1.App Remote Control Real-time Internet Streaming
2.The most advanced pixel
3.Protection grade IP67
